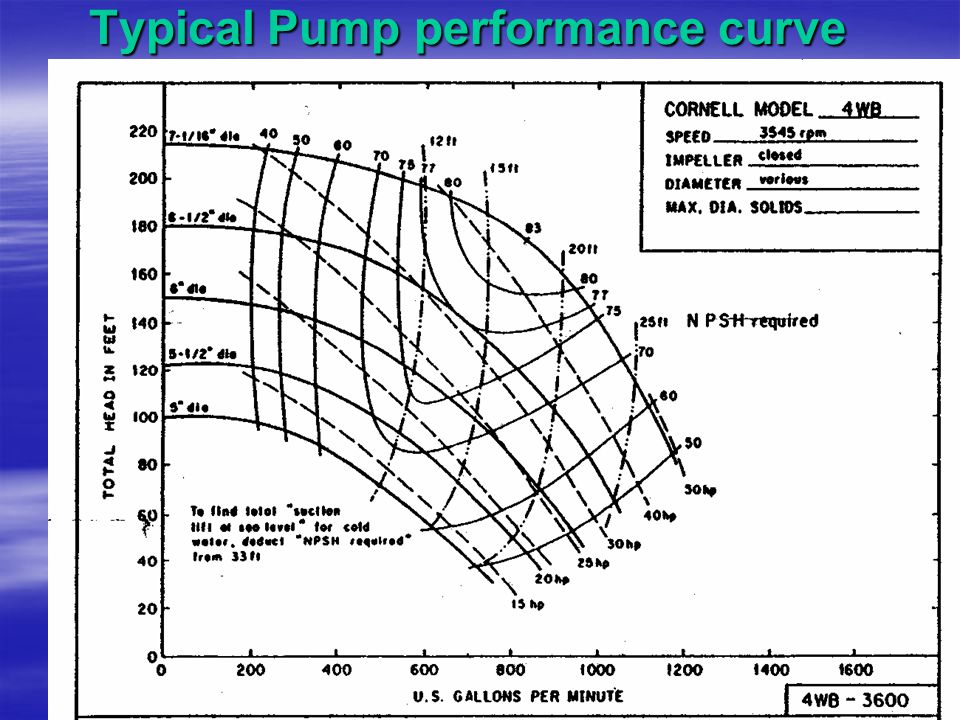

Introduction to Pump Curves The pump develops energy called discharge pressure or total dynamic head tdh This pressure is expressed in units of measure called pounds per square inch psi or feet of head ft NOTE 1 psi will push a col umn of water up a pipe a distance of 2 31a A perfor mance curve is used to determine which pump best

FINAL REPORT iPPTi Sumber www.slideshare.net

3 2 Pump characteristics TU Delft OCW
3 2 Pump characteristics The hydraulic properties of a pump can be described by some characteristics o Q H curve o Efficiency curve o Power curve o Net Positive Suction Head NPSH curve Each of the characteristics is explained in the next sections for propeller pumps 3 2 1 Q H curve The Q H curve is the relation between the volume

The iCentrifugali iPumpi ippti video online download Sumber slideplayer.com

4 TEA Water Services Pump Curves Final MF

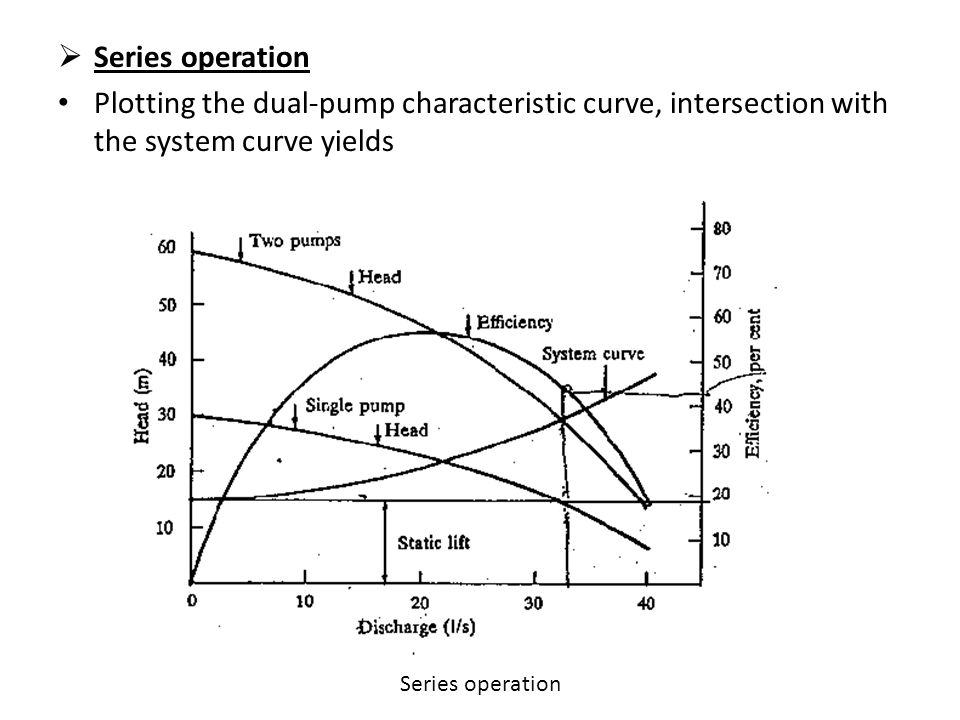

a The operating point of a centrifugal pump also called its duty point is given by the intersection of the pump characteristic curve with the system curve a The flow rate Q and the developed head H are both determined by the intersection a To change the operating point either the system curve or the pump curve must be changed

iCentrifugali iPumpsi iCharacteristicsi Marine Notes Sumber marinenotes.blogspot.com

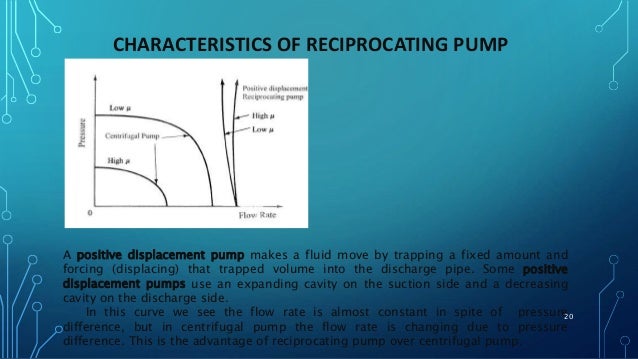

Centrifugal pump SlideShare

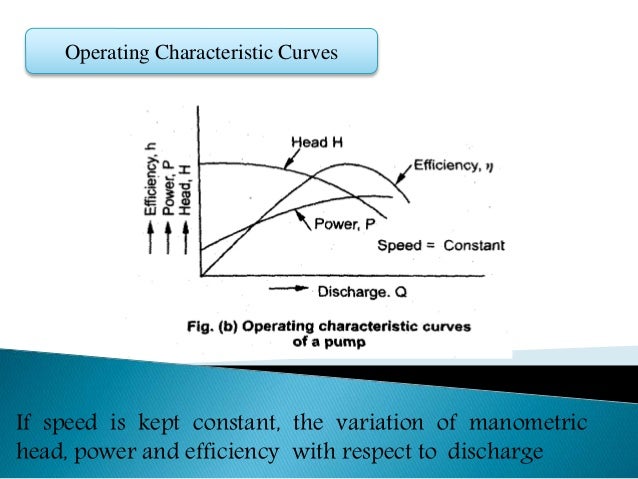

25 02 2019AA Overall Efficiency Ratio of power output of the pump to power input to the pump or shaft wQHm P WHm P 17 These are required to predict the performance behavior of pump working under different head flow rate speed Following are the important curves a Main characteristic curve b Operating characteristic curve

iPumpsi Irrigation ipumpsi lift water from an existing source Sumber slideplayer.com

GW P Lesson 28 Characteristic Curves of Centrifugal Pumps
Main characteristics curves of a centrifugal pump Source Modi and Seth 1998 28 3 2 Operating Characteristic Curves During operation of a pump the pump must run constantly with the speed of the prime mover this constant speed is usually the design speed The set of main characteristics curves which corresponds to the design speed is

iPumpsi and Pumping Theory ippti download Sumber slideplayer.com

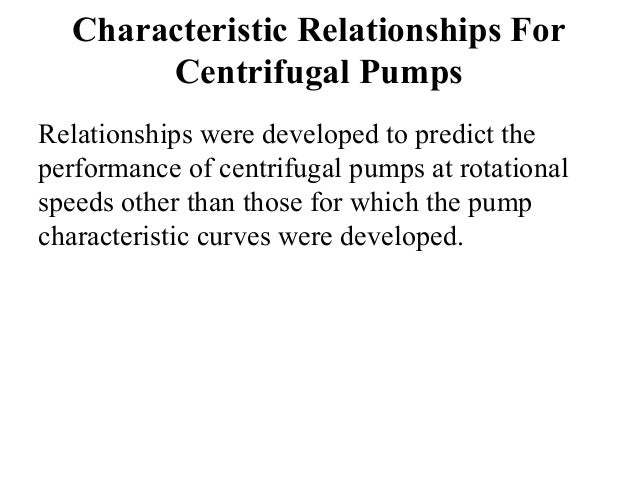

PPT a CENTRIFUGAL PUMP CHARACTERISTICS PowerPoint
CENTRIFUGAL PUMP CHARACTERISTICS CE 370 Types of Pumps There are different types of pumps which are used for different purposes in water and wastewater transportation a A free PowerPoint PPT presentation displayed as a Flash slide show on PowerShow com id 4058f7 NjE4M

Lecture slides by Mehmet Kanoglu ippti download Sumber slideplayer.com

Pump Characteristic Curve YouTube
Centrifugal Pump Characteristic Curve For an Operations Engineer who is working in a Chemical Process industry or a Process engineer who is involved in Hydraulic calculations understanding the Centrifugal Pump Performance Curve is an important aspect Components of Centrifugal pump performance curve 1 Head Vs Flow Curve H Q Curve 2

Chapter 8 Flow in Pipes Internal Flow ippti download Sumber slideplayer.com

Centrifugal Pumps Design Aspects YouTube
There are several terms associated with the pump characteristic curve that must be defined Shutoff head is the maximum head that can be developed by a centrifugal pump operating at a set speed Pump runout is the maximum flow that can be developed by a centrifugal pump without damaging the pump Centrifugal pumps must be designed and operated
